Project Overview

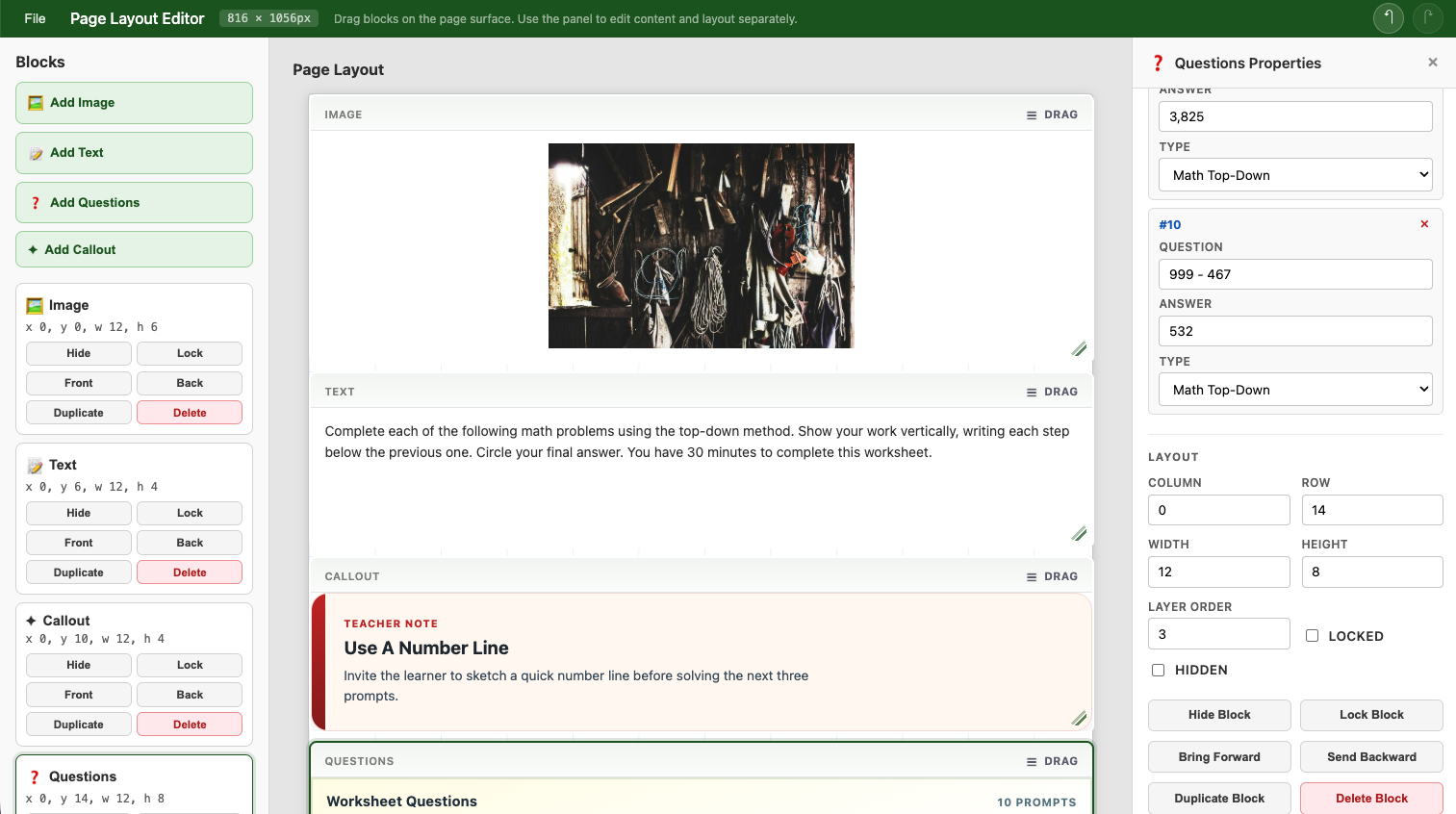

Page Layout Editor is a reusable Angular library for building block-based page layouts with grid controls, drag-and-drop positioning, collision detection, and JSON document serialization. It ships as an npm package that host applications can integrate and extend with their own custom block types and renderers.

Core Features

Document Model

• Content/layout separation: Content blocks own data and schema; layout blocks own position, size, z-order, and state
• JSON persistence: Stable, validated document format that can be saved, loaded, and evolved
• Page settings: Configurable grid dimensions and document size

Editor Behavior

• Drag and drop: Move blocks freely within the page grid
• Resize: Handles for adjusting block dimensions
• Collision detection: Prevents overlapping blocks with visual feedback
• Selection: Click-to-select with property panel editing
• Undo/redo: Full history support for editing actions
• Lock and hide: Per-block controls for locking position or hiding from view

Extensibility

• BlockSchema: Define content fields and property panel editing behavior
• BlockRegistry: Register block identity, defaults, and layout defaults
• BlockRendererRegistry: Inject host-provided Angular renderers keyed by renderKind
• Custom print adapters: Host-provided print/export output handling

Built-in Renderers

• Image blocks
• Text blocks
• List-grid blocks
• JSON blocks

Architecture

The library enforces a clean boundary between editor and host:

• The library owns: editor behavior, layout rules, property editing, history, collision handling, and print orchestration
• The host app owns: routing, persistence, domain-specific block types, custom renderers, and product-specific workflows

This separation allows the same editor to serve different product domains without coupling the core to any specific use case.

Target Use Cases

Teacher-Facing Content

Generated question sheets, classroom prompts, and structured printable learning materials. A system generates content, injects it into the document model, and lets a user arrange or refine it before printing.

Marketing and Flyer Composition

Page composition for promotional content — callouts, images, text blocks, and structured layouts that become printable or shareable materials.

Any Angular App Needing a Layout Editor

Any Angular application that needs a reusable block-and-layout document editor can integrate the library via npm.

Getting Started

npm install page-layout-editor

The library targets Angular 21 and provides consumer documentation for integrating from another Angular application.

Testing

• Unit tests: Vitest covers layout rules, collision handling, serialization, block lifecycle, and renderer contracts
• Browser tests: Playwright smoke tests cover selection, undo/redo, collision feedback, resize, and host-rendered block behavior

Community

Page Layout Editor is open source under the MIT license. Visit the GitHub repository to get involved or report issues.
